The four-way shuttle vehicle has become an important core in the shuttle vehicle shelf system. As a high-tech and advanced automated material handling equipment, it can be said to be equivalent to an intelligent mobile robot, and is a true three-dimensional shuttle vehicle. A complete four-way shuttle truck rack system can not only allow goods to be fully informationized and automatically accessed in the warehouse as needed, but also can be interconnected with WMS management systems through wireless networks, and can be used in conjunction with hoists to reach any location on any shelf. Other equipment is configured according to the operating flow to reduce unnecessary equipment waste, not only making the entire system more flexible and flexible, It greatly reduces the workload of warehouse personnel, provides the possibility of unmanned work in the warehouse, realizes access automation, and facilitates the formation of advanced logistics systems, reduces unnecessary cost inputs for enterprises, and improves the management level of enterprises. It is especially suitable for warehouses such as cold storage that are not suitable for long-term residence of personnel. It is the development direction of high-density dense storage and automated warehousing in the future.
The four-way shuttle vehicle is a highly flexible technology, and flexibility is one of the basic directions of logistics technology development. The application of AGV fully demonstrates this point. From the current application perspective, there is still room for further flexibility of the four-way shuttle car. For example, the self elevating four way shuttle vehicle and the ground walking four way shuttle vehicle are two meaningful research topics. That is, AGV, elevator, shuttle car integration technology.
Since the establishment of Guangyuan Shelf Factory in 1996, Hebei Woke Metal Products Co., Ltd. has been continuously advancing and developing in the footsteps of high-tech. In 1998, he began to engage in the sales and installation of warehousing and logistics equipment. After more than 20 years of development, it has become a comprehensive, comprehensive, and high-quality one-stop integrated warehousing and logistics service provider that integrates warehousing and logistics project design, equipment and facility production, sales, integration, installation, debugging, warehouse management personnel training, and after-sales service! We have also established our own brand HEGERLS, and our series of products and services have covered nearly 30 provinces, cities, and autonomous regions in China. Our products are exported to countries and regions such as Europe, the United States, the Middle East, Latin America, and Southeast Asia, and have achieved remarkable results overseas.
Of course, there have also been significant breakthroughs in the above-mentioned series of research courses that integrate AGV, elevator, and shuttle vehicle technology. Taking the core points of the tray type four-way shuttle vehicle under the HEGERLS brand as an example, let’s take a look at the achievements made by Hebei Woke regarding the four-way shuttle vehicle.
What are the core points of the Hagrid HEGERLS tray type four-way shuttle? On this issue, there are two aspects that can reflect the differences between the HEGERLS four-way shuttle and other brands in the same industry, and why more and more enterprises choose to use the HEGERLS four-way shuttle nowadays.
Level 1: Embodiment of the characteristics and values of the Hercules HEGERLS four-way shuttle
HEGERLS is the independent brand of Hebei Woke Metal Products Co., Ltd. Hebei Woke Metal Products Co., Ltd., as a provider of intelligent logistics equipment and storage shelves, adopts a combination of uniform and robust design in the design and production of intelligent pallet type four-way shuttle vehicles to optimize the mechanical structure, thereby achieving low energy consumption, high efficiency, reliable and stable operation of the four-way shuttle vehicle; The wheel material is polyurethane because it has advantages such as high cutting resistance, high abrasion resistance, excellent chemical resistance, and oil resistance; At the same time, multi-level hardware and software monitoring measures are taken to set safe running distances and judgment principles. Through specific operation limit blockers or anti overturning mechanisms, the safety of the entire vehicle operation is ensured. Under the command of the real-time monitoring and scheduling information management system, cooperative operation of multiple vehicles can be achieved. Not only that, the HEGERLS pallet type four-way shuttle vehicle manufactured by Hebei Woke needs to have sufficient strength and compression resistance, and is not prone to deformation. The entire system also features high efficiency, accuracy, intelligent scheduling, clean and low noise, and flexible configuration during warehouse operation. Such a HEGERLS pallet type four-way shuttle vehicle can also operate normally in high-temperature and low-temperature storage environments.
Layer 2: The value embodiment of the Hercules HEGERLS four-way shuttle vehicle in specific functional design

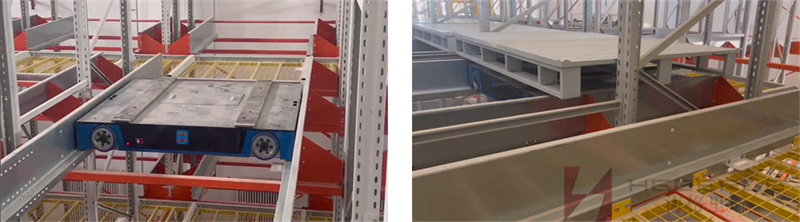

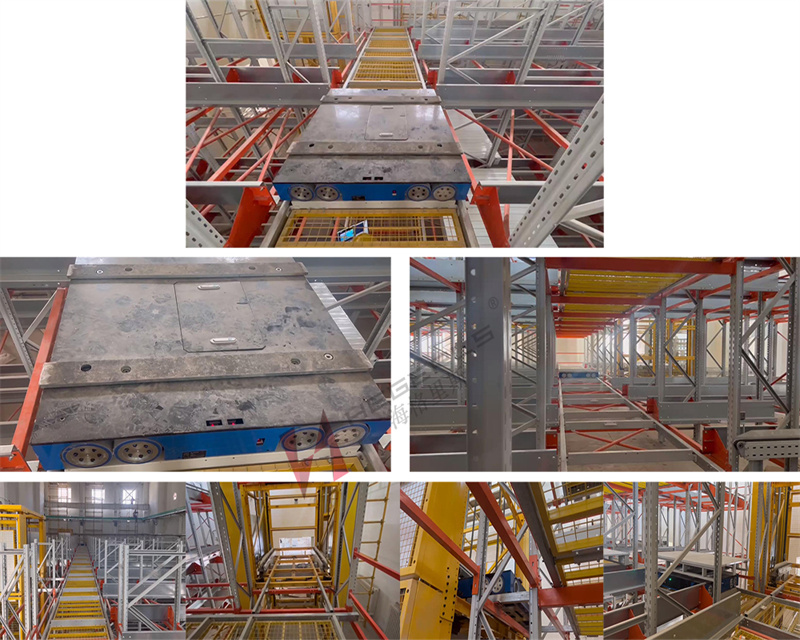

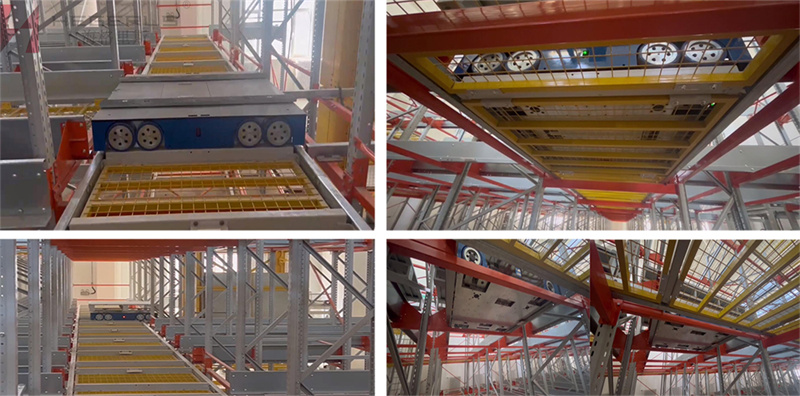

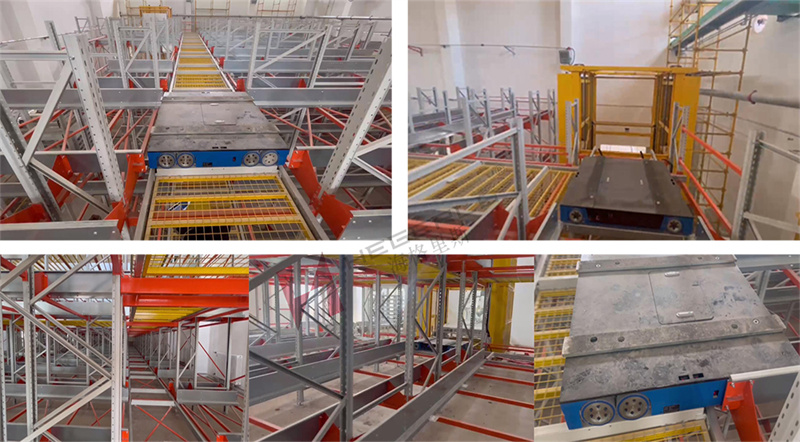

Four-way travel: The HEGERLS pallet four-way shuttle can run in four directions on the dedicated tracks of large warehouse three-dimensional warehouse projects, and at the same time, it can reach any designated cargo location in the warehouse under the scheduling of the WCS management system. Moreover, it can also achieve the function of reversing the vehicle body in place by replacing the corresponding wheels on both sides to land.

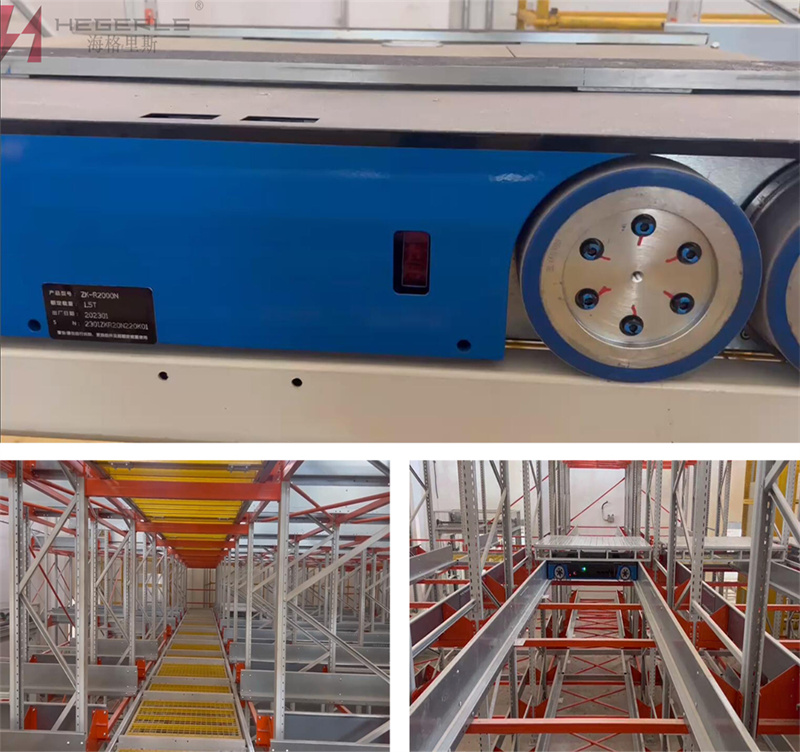

Vehicle shock absorption: Hebei Woke uses special polyurethane wheels during the production and manufacturing of HEGERLS pallet four-way shuttle vehicles, which have pressure resistance, wear resistance, pressure resistance, and shock absorption properties.
Intelligent dispatching control mode: The HEGERLS pallet four-way shuttle adopts the online automatic dispatching mode of the WCS management system, which can be operated in manual remote control mode and maintenance mode.
Battery temperature sensing: The HEGERLS tray four-way shuttle vehicle has an automatic real-time detection function for the battery temperature inside the vehicle body. When the battery in the tray four-way shuttle exceeds the set battery temperature limit, the system will feed back abnormal battery temperature information to the WCS management system in real time; Not only that, when the four-way shuttle vehicle falls below the set low battery value, it automatically uploads relevant battery information to WCS, which dispatches the vehicle to perform the charging task. When the tray four-way shuttle vehicle reaches the charging position, the vehicle charges to the set battery value, and then automatically uploads relevant battery information to WCS, which dispatches the vehicle to resume the task; When abnormal charging occurs during its charging process, it will also feed back abnormal information to the WCS management system in real time. The WCS management system will dispatch the tray four-way shuttle to a dedicated station outside the warehouse to avoid a fire.
Tray sensing and position calibration: The vehicle has tray alignment calibration and tray detection functions. For the HEGERLS tray four-way shuttle with multi-sensor detection functions, supplemented by lane QR codes, accurate positioning functions can be achieved.
Obstacle Sensing: The obstacle sensing function is also the most distinctive feature of the HEGERLS pallet four-way shuttle. When a four-way vehicle is running, obstacles in all four directions can be sensed, allowing for remote obstacle avoidance detection and close stop operations.
Emergency power supply rescue: When the battery power is zero under abnormal circumstances, you can use the emergency power supply, turn on the motor brake, and the intelligent tray four-way shuttle to the corresponding maintenance position for maintenance.
Status display&alarm: When the HEGERLS pallet four-way shuttle is mostly in the installation status display light state, it will clearly indicate various operating states of the pallet four-way shuttle. After installing a buzzer, the buzzer will give an alarm prompt when the four-way vehicle system encounters a fault.
Sleep&Wake Mode: The HEGERLS tray shuttle will enter sleep mode after a long standby period. This design can help the device save power. When it needs to be run again, it will automatically wake up for task operation.
Breakpoint Continuation: When the HEGERLS pallet four-way shuttle is executing incoming and outgoing instructions, due to short-term non hardware failures such as obstacle avoidance, network outages, etc., the four-way shuttle will wait in place until the abnormality is eliminated, and then automatically continue to perform the unfinished task again without human intervention.
The Hagrid HEGERLS pallet four-way shuttle vehicle manufactured by Hebei Woke also has a unique dual motor startup and deceleration mode. This design mode can achieve stable operation of the four-way vehicle under high acceleration and deceleration. At the same time, it also has a dedicated dual charging mode of direct charging and wireless charging. The direct charging mode is suitable for commonly used production environments, while the wireless charging mode is suitable for dustproof and explosion-proof environments.
