In recent years, storage shelves have developed towards automation and intelligence, and various types of automated shelves have emerged in the market. Among them, the box type four-way shuttle truck rack is popular among enterprises. As a storage system integrated with Goods Shelves+Shuttle Vehicles (RGV)+Windlass+Picking System+Control Software+Warehouse Management Software, box type four-way shuttle vehicles have become important carriers for lane changing operations and storage of goods (unit bin cargo+four-way shuttle vehicles), and have been widely used in various warehousing projects.
The box type four-way shuttle vehicle shelf system is more complex in terms of control scheduling, order management, route optimization algorithms, and other aspects, making project implementation more difficult. Therefore, there are relatively few suppliers, and Hebei Woke Metal Products Co., Ltd. is one of the few suppliers. Hebei Woke Metal Products Co., Ltd. (independent brand: HEGERLS) was established in 1996, and is an earlier large-scale manufacturer engaged in the planning, design, manufacturing, installation, debugging, and consulting services of shelves, station appliances, logistics systems, and automated warehouse shelves in China. After more than 20 years of hard work and development, Hebei Woke (independent brand: HEGERLS) has become a high-tech enterprise integrating intelligent logistics solutions and warehousing systems. Hebei Woke has always adhered to the quality policy of “exceeding expectations, meticulously manufacturing, and being consistent in appearance and appearance”, operating in strict accordance with the ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupational health and safety management system, and SGS certification, and always pursues an international management and control mode to ensure the high quality and stability of Hebei Woke. Hebei Woke has always attached great importance to product research, development, and innovation. It has dozens of national patents on intelligent automated logistics and warehousing equipment technology such as shelves, shuttle cars, stackers, conveyors, and mobile shelves, and has also won two awards for the beauty of manufacturing in China. Since its establishment, Hebei Woke has developed rapidly and enjoyed numerous reputations. It is a high-tech enterprise in the field of intelligent logistics equipment in China and a rapidly growing high-tech intelligent logistics equipment manufacturing enterprise.
It is reported that the application of the box type four-way shuttle vehicle was initially mainly aimed at developing a “goods to person” picking system, with obvious advantages in storage efficiency and storage space utilization. With the development of intelligent manufacturing, the application scenarios of box type four-way shuttle vehicles that master the “goods to people” disassembly and sorting technology will continue to expand, with a bright market prospect. For example, the application scenarios of HEGERLS box type four-way shuttle cars in e-commerce and retail mainly fall into three categories:
1) The storage and picking of boxes and pieces in e-commerce (mainly category 3C) and supermarket fields is also very suitable for the HEGERLS box type four-way vehicle disassembly and picking solution, with the characteristics of space saving and flexibility, while also greatly improving efficiency;
2) The HEGERLS box type four-way vehicle disassembly and sorting solution is also applicable to warehouses with high efficiency and space saving in disassembly and sorting;
3) Used for caching and sorting after picking. In situations where the order volume is very large, such as large e-commerce warehouses, where millions of orders need to be processed every day, the HEGERLS box type four-way car sorting solution is used for caching and sorting for order consolidation, with lower costs;

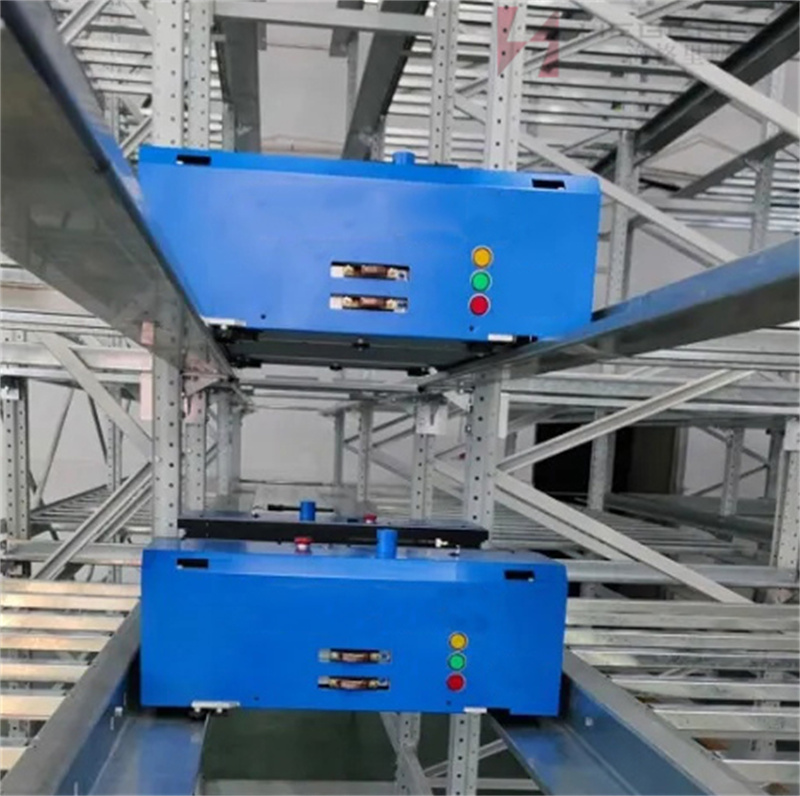

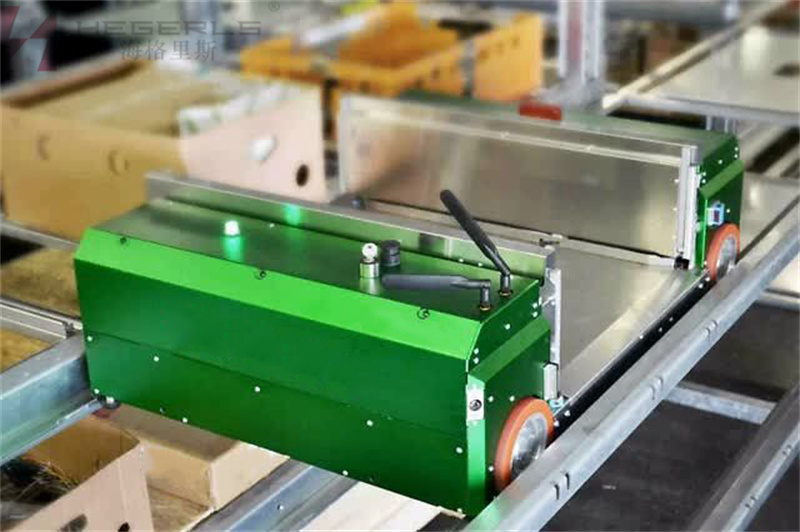

The Hagrid HEGERLS box type four-way shuttle vehicle itself has multiple capabilities such as remote control, self detection of power, prompt and alarm, online charging, remote update and download programs, independent measurement of shelves, parameter entry, communication data transmission, and log recording. In the rack of box type four-way shuttle vehicles, most enterprises are most concerned about the system configuration software provided in the box type four-way shuttle vehicles. Generally speaking, the system configuration of WMS software requires interfacing with the enterprise’s ERP system, configuring WCS software, and responsible for the decomposition, distribution, and equipment scheduling management of job tasks. The question arises, how does WMS software perform task decomposition, distribution, and device scheduling management?
1) Warehousing
◇ WMS system manages the binding of turnover box barcodes and materials, laying a foundation for inventory management;
◇ After manually completing the work of putting the turnover box online, the turnover box will automatically enter the conveying system after passing the code scanning and superelevation detection without any abnormality;
◇ The turnover box entering the conveying system is transferred to the designated cargo location through a box elevator and a box four-way shuttle vehicle according to the system allocation logic.
◇ The WMS system automatically updates the inventory information after receiving the order to complete the release of the box type four-way shuttle vehicle, thereby completing the warehousing work.
2) Storage
The materials that need to be stored will be classified into three categories based on the calculation and judgment of the previous big data. The system storage location planning will also be designed based on ABC. Each floor will directly face the cargo space on the sub road of the box elevator, and is defined as a Class A material storage area. The surrounding area is a Class B material storage area, and the other areas are Class C material storage areas. In the Class A material storage area, due to the direct alignment of the box elevator, the box type four-way shuttle does not need to switch to the main track mode when picking up and placing this type of material turnover box, which greatly improves the time for acceleration, deceleration, and switching between sub main tracks, making it more efficient.
3) Picking
◇ After receiving an order from ERP, the WMS system will automatically generate a picking batch, calculate the required materials, and generate a material turnover box for outbound tasks based on the storage unit where the materials are located;
◇ The material turnover box will be transferred to the picking station after passing through the box type four-way shuttle car, box elevator, and conveyor line;
◇ In the rack of a box type four-way shuttle truck, a picking station has multiple material turnover bins for staff to take turns picking, so that staff no longer need to wait for turnover bins;

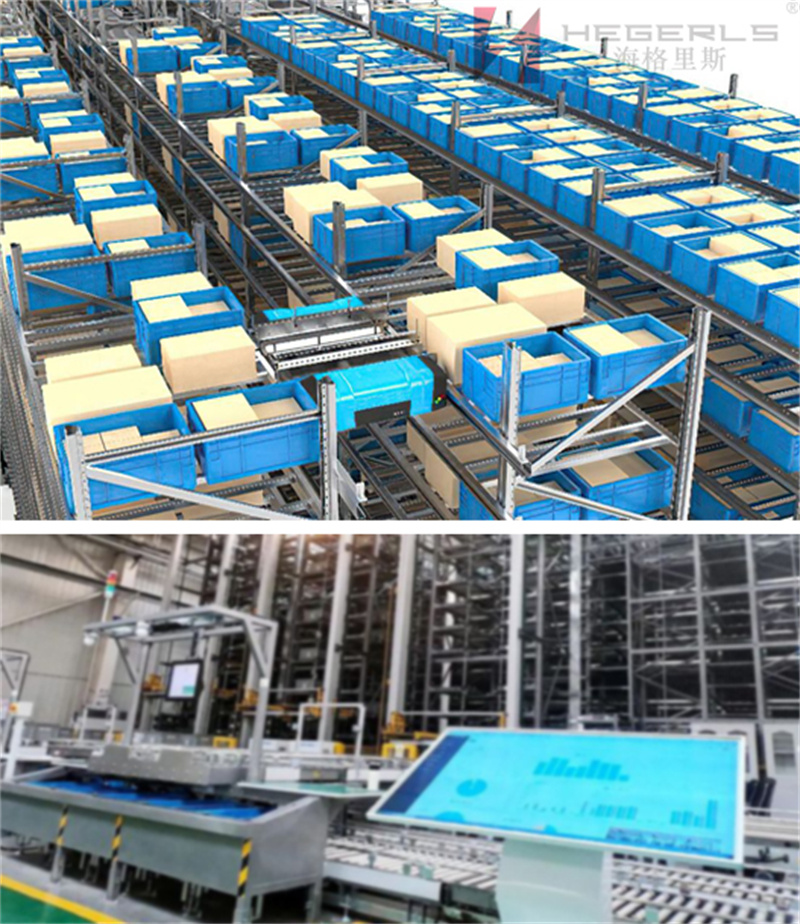

◇ In the box type four-way shuttle system, there is also equipped with a WMS software client display screen to prompt the information of the goods grid and materials where the materials are located. At the same time, the light on the top of the picking table illuminates the goods grid to be picked, sending instructions to the staff. This working mode also improves the picking efficiency of the staff;
◇ When multiple order boxes are equipped, there are button lights on their corresponding positions to remind the staff to throw materials into the order box with the lights on, to achieve foolproof and reduce errors.
4) Order box delivery
After picking the order box, the system will automatically transfer it to the warehouse transportation line. After scanning the barcode of the turnover box through the PDA, the system will automatically print the packing list and order information, providing a basis for subsequent collection, packing, and review. After merging small order materials with other large order materials, they are promptly shipped to customers.
