With the rapid development of modern enterprises, more and more enterprises will use all kinds of shelves according to their own actual conditions to meet the storage needs. At the same time, in terms of logistics storage, the design of different types of storage shelves among shelves can save storage space and reflect the charm of logistics storage. With the continuous development in recent years, there is also a kind of shelf that is being put into use by major enterprises, that is, double depth shelf.

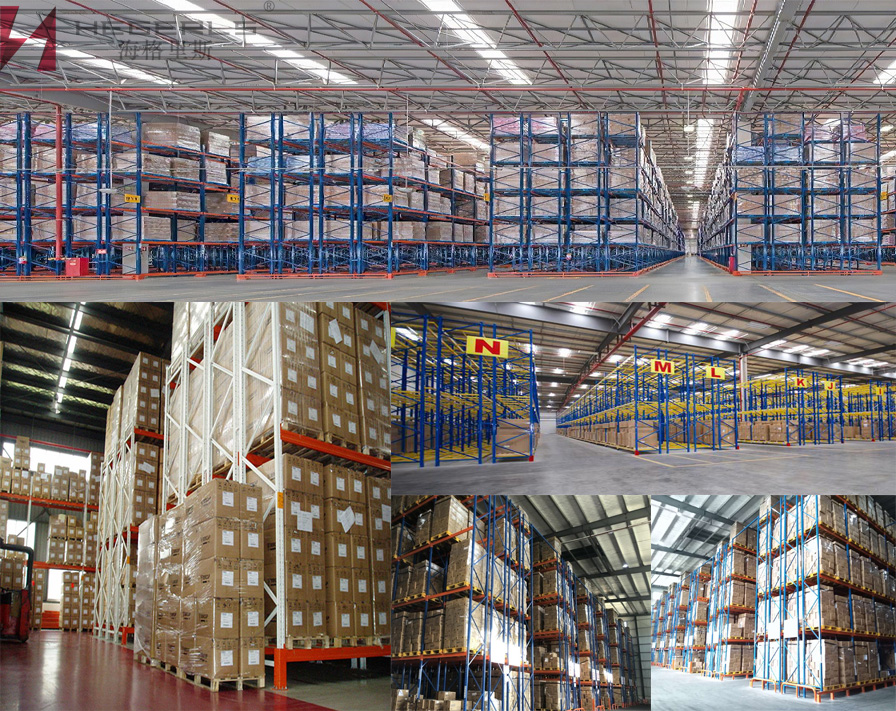

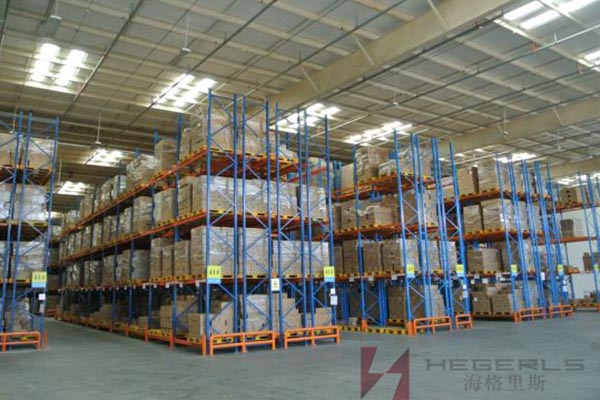

Double depth shelf

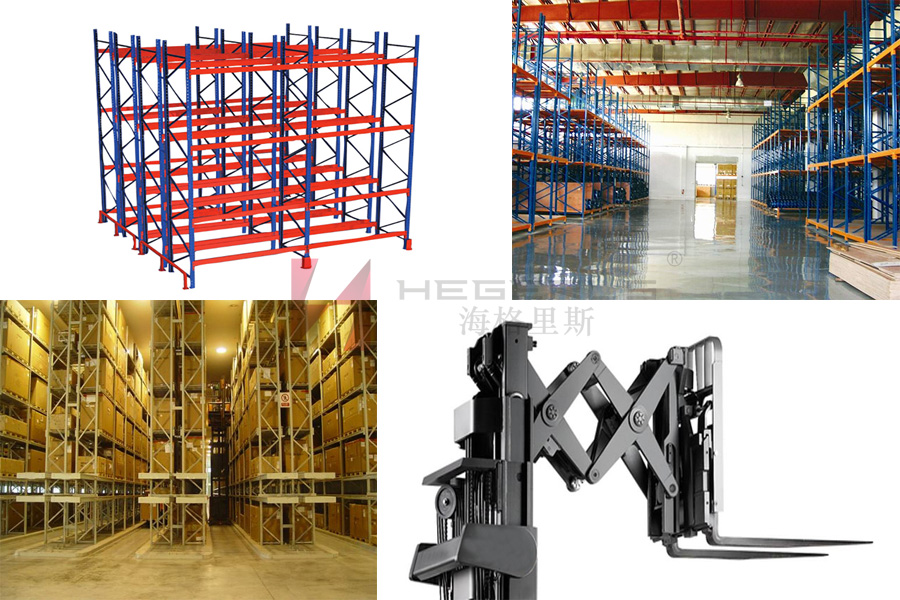

Double depth shelf, also known as double depth shelf, is a scissor type forklift (heglis reminds that the biggest difference between scissor type forklift and ordinary forklift is the structure of the front fork. Scissor type forklift adopts the scissor type structure of the front fork, and the front fork can carry out telescopic operation. When the forklift body is stationary, the front fork can cross the nearest pallet position and work more deeply on the inner pallet position), The rack is designed as a double row parallel storage rack type. The double depth rack series is derived from the heavy beam rack, which is simple in structure and has high storage capacity. It can also effectively alleviate the storage requirements that the ordinary beam rack can not meet, and double the inventory compared with the ordinary beam rack. The biggest advantage of double depth shelves is also reflected in the high utilization rate and good selectivity of the warehouse, the use of special forklifts, and the design of the lane size is the same as that of Apr. it is widely used in the paper industry, plastic products industry, tobacco, food and beverage, packaging and other industries.
So which warehouses can use double depth shelves? The warehouses that can apply double depth shelves can be divided into the following categories according to the use of customers who have cooperated with haggis shelf manufacturers in the past:
Because the double depth shelf system is a derivative shelf of the beam type shelf system, it is a very general and adaptable solution that can meet various storage needs. However, their larger storage capacity and less unit cargo accessibility make their application particularly recommended for warehouses with the following characteristics:
1) A product warehouse with more than one pallet per special storage unit.
2) Store the same type of product warehouse.
3) A warehouse where goods are stored with a medium to long service life (it is not recommended to store products with a short shelf life because double depth shelves are an advanced and backward type of shelf system).
4) Warehouse with high performance inventory management system.
5) A warehouse that needs to strike a balance between accessibility or selectivity per unit load and an increase in storage capacity.
6) It is mostly used in fast moving consumer goods warehouse and frozen warehouse for batch shipment.
7) Double deep shelves are also often used in high-level warehouses.
At the same time, the double deep shelf belongs to the three-dimensional shelf warehouse storage system according to the system, which is a combination of the selective system and the corridor system. According to the structure, it belongs to tray type shelves, and the number of layers is generally more than 4.

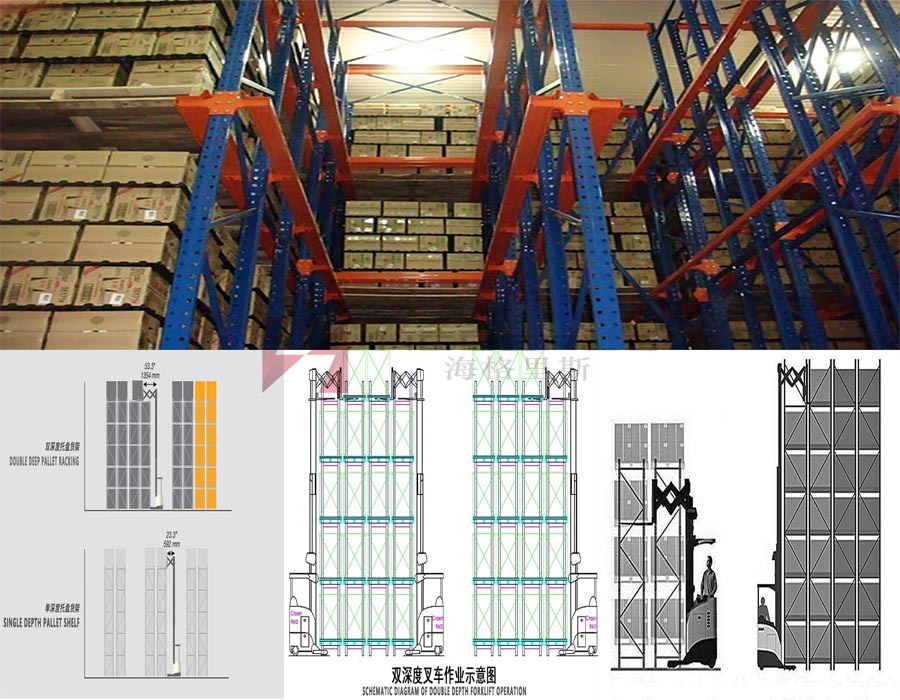

Double Deep Pallet Racking
Double depth pallet shelf: the type derived from the beam pallet shelf; The goods are placed double along the depth direction of the rack, and the forward moving forklift with telescopic fork arm must be used to access the goods. Under the same site conditions, the storage capacity can be increased by up to 30%, but only 50% of the goods can be accessed immediately.
Features of double depth pallet rack: the beam height is low, the operating height can reach 8m, the medium inventory flow, providing 50% selectivity, suitable for warehouses with low pick-up rate, and the ground utilization rate is 42%.
Comparison between double depth pallet shelf system and standard pallet shelf system
Compared with the standard pallet rack system, the double depth pallet rack system can store two pallets in the depth direction. When accessing the rear pallets, it is necessary to use a special forklift that can reach into the shelves, with the same cost and higher storage density. When the accessibility of goods is important and each kind of goods needs to store multiple pallets, the benefit of using this system is the best. The shelf height is limited by the lifting height of the forklift, generally 6-8m.
The double deep shelf is relative to the single deep shelf. The single deep shelf stores a row of unit goods on one side or both sides of each lane. The double deep shelf stores two rows of unit goods on one side or both sides of each lane. That is to say, between two adjacent channels, the double deep shelf reflects that there are four groups of high-rise pallet shelves.
Haigris shelf manufacturing company is an enterprise specializing in manufacturing shelves and equipment and facilities. It specializes in the design of various types of shelf series. Its main businesses include shelves, storage shelves, warehouse shelves, storage shelves, double depth shelves, pallet shelves, mobile shelves, mold shelves, iron shelves, three-dimensional warehouse shelves, corridor storage shelves, cantilever storage shelves, intensive storage shelves, shuttle shelves Drawer type shelf, universal angle steel shelf, stack type shelf, loft type storage shelf, light-weight storage shelf, medium-weight storage shelf, fluent type shelf, beam type shelf, weight type storage shelf and supporting equipment: folding storage cage, plastic turnover box, grid series of various pallets, hydraulic lifting platform, etc., design, processing and installation of all-round services!
In recent years, Hagrid has been continuously pursuing the latest development of the world’s warehousing and logistics equipment. With its brand-new modern logistics concept, strong technical support and rich industry experience, according to the different actual needs of the market and customers, Hagrid has provided customers with warehousing and logistics system solutions and plans suitable for different environments. It has also applied exquisite manufacturing technology and advanced production technology and equipment to provide many customers with advanced, practical, efficient, safe A variety of storage shelf products and logistics equipment are favored by customers.
Post time: Sep-06-2022
