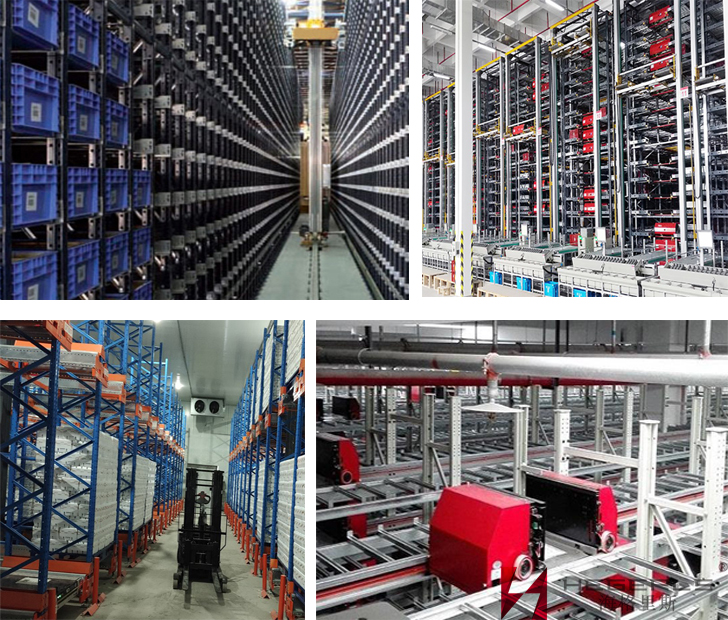

In recent years, with the continuous popularity of the Internet, e-commerce has developed rapidly. Customers’ order commodities show the characteristics of many varieties, few batches and short delivery period, which makes the storage density of the shelves in the supplier’s logistics distribution center continuously improve. The frequency of materials entering and leaving the warehouse is increasing. The number of small parts picking is increasing day by day. More and more logistics distribution centers use the shuttle car based goods to people picking system.
HEGERLS (Hebei Walker Metal Products Co., Ltd.

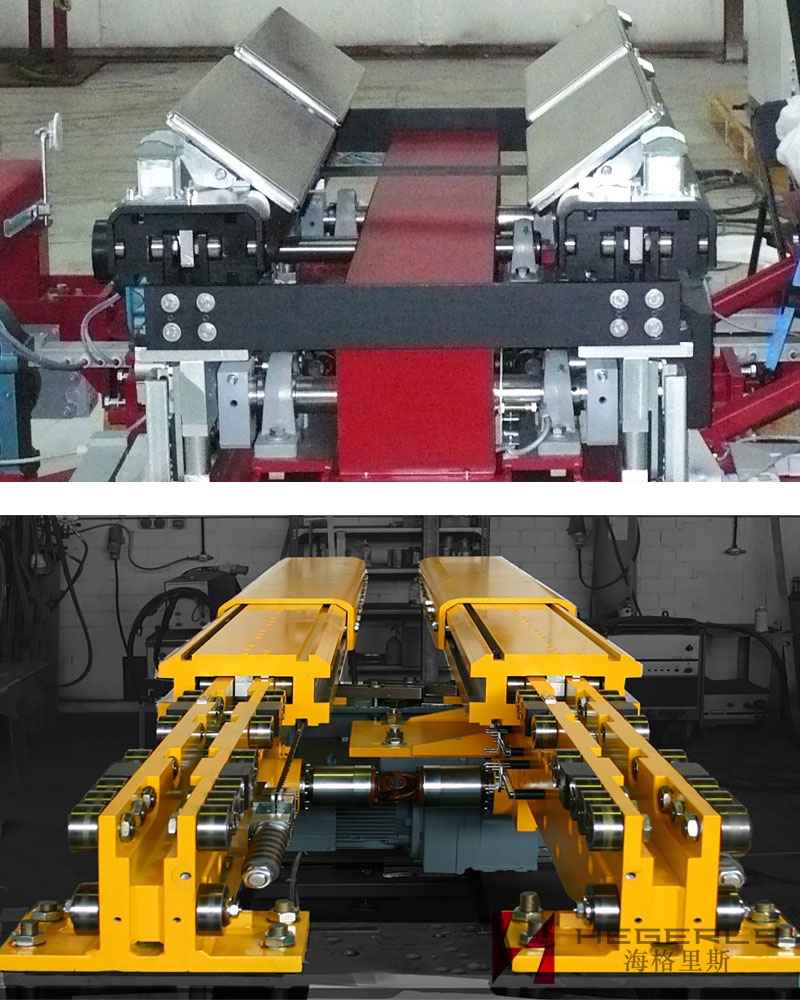

Clamping telescopic forks are widely used in automatic storage equipment such as stereo warehouse multi-layer shuttle cars, shelf type bins AGV, RGV, and mini load. The maximum weight of the material box held by HEGERLS can reach 50Kg. The clamping width of the fork arm can be adjusted arbitrarily within the range of 200~600mm. The maximum picking travel is 840mm. The maximum operating speed of the telescopic fork is 1.5m/s, and the acceleration is 1.2m/s ²。 The operating noise is controlled within 75dB, which can meet the requirements of most single and double extension racks. HEGERLS can also customize the multi-layer shuttle car stereoscopic warehouse of the gripping telescopic fork box according to the specific requirements of customers, such as the gripping width, picking stroke and other parameters.
The parts in the Hiygris HEGERLS gripped telescopic fork box multi-layer shuttle car stereo warehouse The telescopic fork is a telescopic mechanism used in the stereo warehouse and the logistics automatic storage system for material storage or transfer. It has flexible two-way automatic expansion function and accurate limit function! It can be directly mounted on the stacker, or mounted on a fixed lifting mechanism, or mounted on a mobile lifting platform. The stacker runs through the roadway between shelves to automatically access or transfer items! It can be connected with production line system and enterprise management system. It uses computer and barcode technology (encoder) to realize information intelligent management and operation!
About HEGERLS Clamping Telescopic Fork

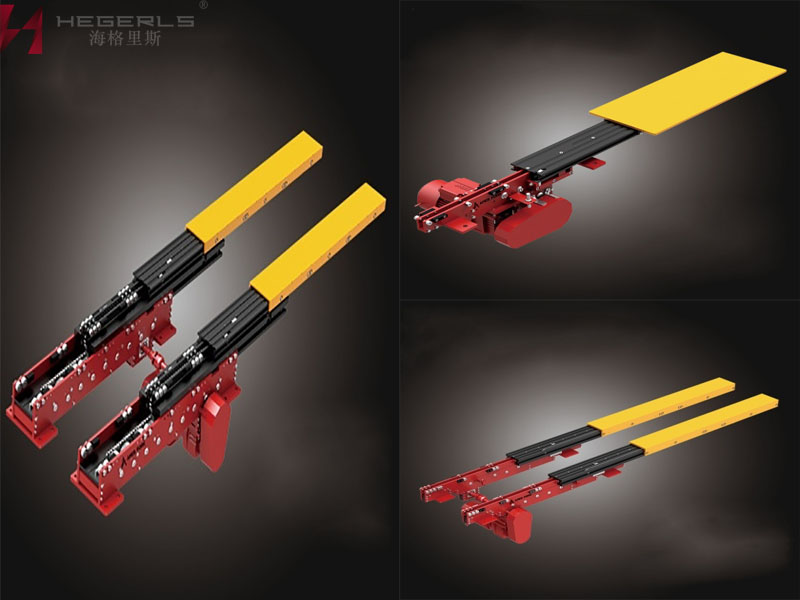

HEGERLS telescopic gripper fork is a unique kind of fork in the series of telescopic forks of stackers, namely, a two-way automatic telescopic gripper fork, also known as a holding gripper fork or a holding gripper fork, a fork fork or a fork fork. It is a fork specially used for the transfer of small bins. It can be directly assembled on a multi-storey picking AGV or other working platforms, with the expansion of the fork arm and the clutch of the lever (hook), Complete the access or transfer action!

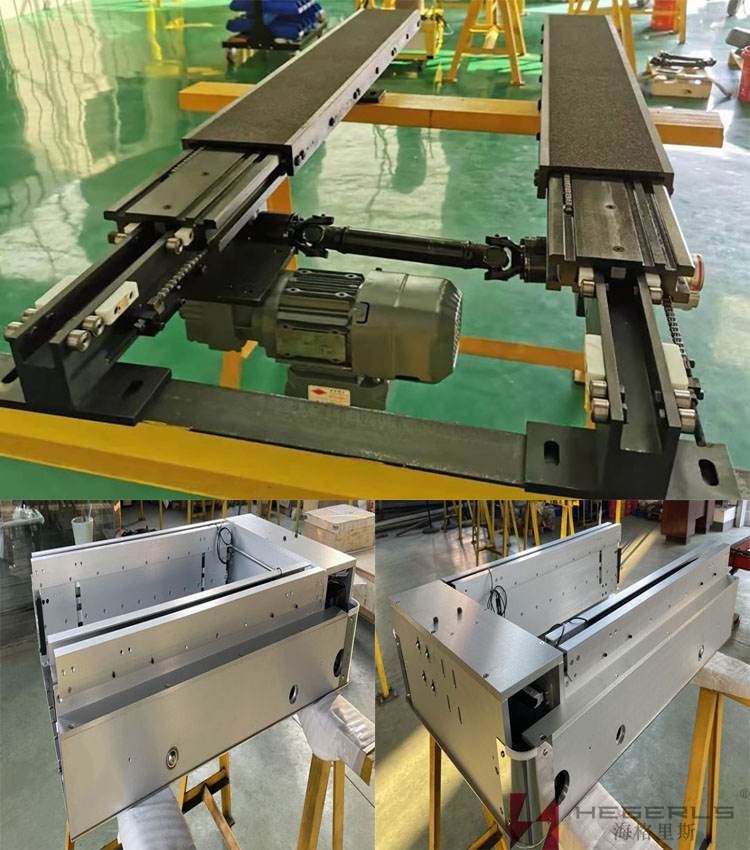

The HEGERLS gripper fork is mostly made of aluminum alloy, featuring small size, light weight, fast running speed and smooth expansion. At the same time, it also adopts the principle of multi motor synchronization, realizing that the same telescopic fork mechanism can be used to transfer or access boxes of different specifications. It not only effectively improves the storage efficiency, but also greatly improves the space utilization rate of storage, especially for high-rise intensive Intelligent warehousing!
HEGERLS clip on telescopic fork structure

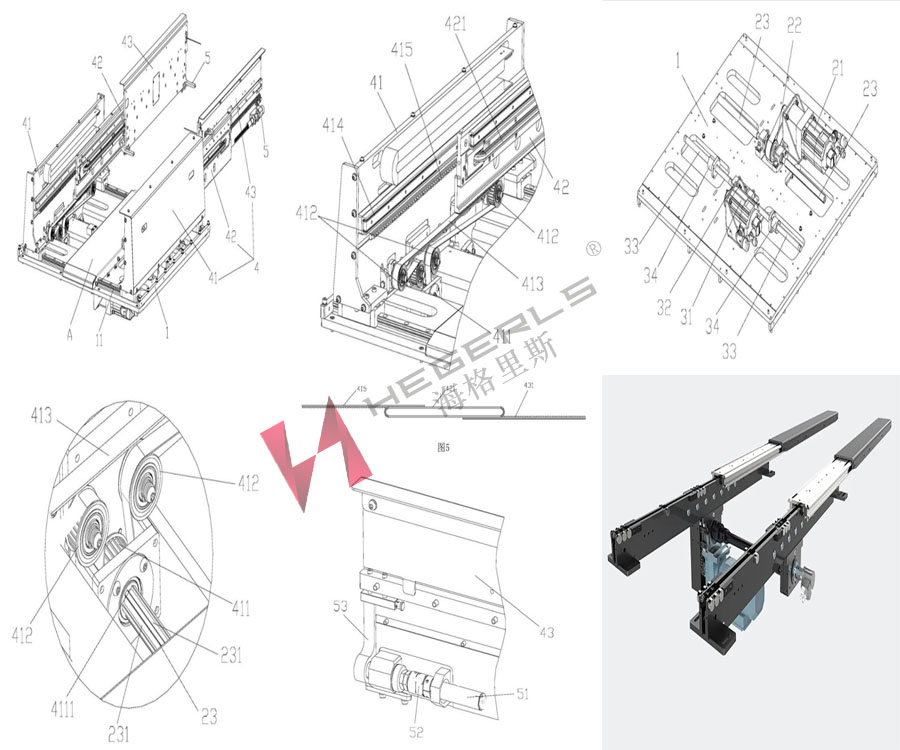

The structure of HEGERLS gripper fork can be divided into deep storage location and shallow storage location. A deep storage location is a storage location with two material boxes, and a shallow storage location is a storage location with one material box. That is, a deep storage location can clamp two material boxes at a time, while a shallow storage location can only clamp one material box at a time. The difference between the HEGERLS gripper fork and the ordinary duplex telescopic fork is that the finger pulling fork is still composed of three fork bodies, namely, the inner fork body, the middle fork body and the outer fork body, except that the front fork body has one more pull rod (hook), which is matched with the guide rail (slide rail), roller bar, synchronous wheel, synchronous belt, fluent bar, shift rod (hook), jacking shaft, wheel bar, drive motor (servo), shift rod motor The detection instrument and other components form a complete telescopic mechanism, which cooperates with the telescopic fork arm and the clutch of the lever (hook) to complete the access or transfer action!
Working principle of HEGERLS clip on telescopic fork
The fork arm of the HEGERLS gripper fork is side standing and connected laterally by guide rail. Through control, the guide rail can slide back and forth to adjust the distance between the two fork arms of the fork, so as to achieve the common use of a fork for multi specification material boxes! When picking up materials, the fork extends to the material storage position, the retaining hook (lever) automatically lowers and blocks the end face of the carton or plastic box, and then the fork retracts, dragging the carton or plastic box to the middle of the fork, and then moves out in reverse according to the degree requirements, the hook (lever) is pulled back, and the fork retracts again to complete the task of picking up or transferring! Although the principle of the gripper fork is the same as that of the ordinary telescopic fork, the transmission parts, connecting rods and other components of the finger fork are greatly different. It is used to describe that the chain wheel, chain, gear, rack, etc. are all replaced by synchronous wheels, synchronous belts, etc., while the sliding arm uses guide rails, and the fork body materials are all replaced by metal sheets or aluminum alloy materials, so the weight of the gripper fork is only about 80kg.
In addition, it should be noted that during the design of the gripper type telescopic fork, the size of the dense storage shelves, the vertical position of the shelves with boxes, the track level and the size of the boxes should be combined to determine the overall parameters of the extension forks (extension fork movement, box spacing, fork width, fork internal width, fork height, etc.), so as to meet the needs of containers on the shelves. Clamping fork can only transfer or access the products packaged in cartons or plastic boxes effectively, and cannot transfer irregular materials. In addition, the volume and weight of the transferred material box should not be too large, and the load weight should not exceed 100KG! The height of the clamping fork is generally designed according to the height of the bin!
About HEGERLS Clip on Shuttle

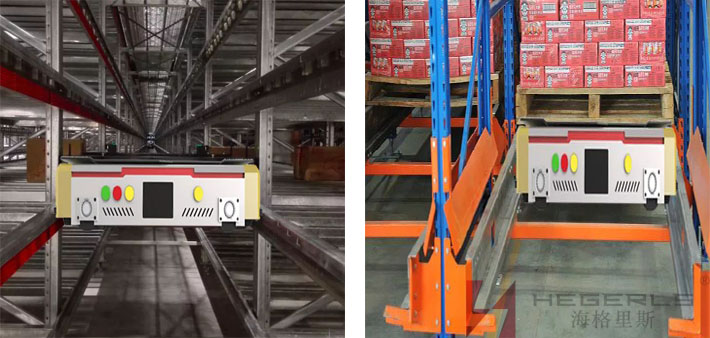

The structure of HEGERLS clip on shuttle consists of shuttle frame, shuttle chassis, traveling mechanism, secondary fork extension mechanism, collector, bearing plate and bearing platform. The structure is as follows:
Any shuttle frame is usually a closed cavity composed of the main body brackets on both sides, the shell and the inner hub bracket, and is respectively arranged at both ends of the shuttle chassis; The shell is provided with an upper cover which can be opened and closed through a turnover door hinge; A panel wire rack is arranged above the hub bracket; The traveling mechanism comprises a driving wheel, a passive wheel, a DC brushless motor, a reducer and a connecting shaft; Both sides of the shuttle frame at one end of the shuttle chassis are provided with driving wheels connected by connecting shafts, and both sides of the shuttle frame at the other end of the shuttle chassis are provided with passive wheels connected by connecting shafts; The DC brushless motor cooperates with the reducer to drive the driving wheel and drive the passive wheel; The connecting shaft is provided with a magnetic encoder, through which the starting and stopping positions of the shuttle on the straight track are obtained; A secondary fork extension mechanism is symmetrically arranged on the inner side of the shuttle car frame; The shuttle chassis between the secondary fork extension mechanisms is provided with a bearing platform for placing the cargo basket; The closed cavity of the shuttle car frame is respectively provided with a bearing plate, on which a driving plate, a main control plate of the traveling mechanism and a main control plate of the fork extension mechanism are successively arranged; The driving plate drives the traveling mechanism to drive the shuttle to run on the straight track. The main control board of the traveling mechanism controls the running parameters and start stop positions of the shuttle, and the main control board of the fork extension mechanism controls the secondary fork extension mechanism to grab and place the basket on the shelf; A collecting device is set between the shuttle car and the straight track, which is connected with the electrified wire arranged inside the straight track and used to supply power for the shuttle car. The structural feature of the clip on intelligent shuttle car for storage also lies in that grooves are set at the positions where the driving wheel and the passive wheel respectively contact the connecting shaft, and an elastic retainer ring is set in the groove to form the axial positioning of the driving wheel and the passive wheel. Double guide wheels are respectively set at the side of the shuttle chassis under the driving wheel and the passive wheel, and between the straight track and the shuttle chassis. The double guide wheels form the left and right limits when the driving wheel and the passive wheel are running on the straight track. The secondary fork extension mechanism includes: the first level fork extension push plate, the second level fork extension plate, the second level synchronous pulley mechanism, the second level fork extension drive mechanism, the fork extension drive motor, another reducer, and the drive shaft; The outer side of the hub bracket of the shuttle car frame is provided with a first stage fork extension push plate; A U-shaped chute is arranged in the middle of the first stage fork pushing plate, and several U-shaped chute pulleys are arranged at equal intervals in the U-shaped chute; A secondary fork plate is arranged outside the U-shaped chute; The secondary fork plate is connected with several U-shaped groove pulleys through bolts and nuts; The top ends of the second stage fork extension plate are respectively provided with a shift fork, a DC planetary reducer motor and a photoelectric sensor from the outside to the inside; The photoelectric sensor is used to obtain the position signal of the fork and send it to the main control board of the fork extension mechanism, which controls the DC planetary reducer motor to drive the fork to move horizontally or vertically; A secondary synchronous pulley mechanism is respectively arranged on the primary fork pushing plate and directly below and above the U-shaped chute; The secondary synchronous pulley mechanism is connected with the synchronous belt pressing plate on the secondary fork extension plate; The fork extension drive motor and another reducer drive the secondary fork extension drive mechanism to move, and drive the secondary fork extension drive mechanism on the other side to move through the drive shaft, so that the primary fork extension push plate moves and drives the secondary synchronous pulley mechanism to move, thus driving the secondary fork extension plate to move. The two-stage fork extension transmission mechanism comprises a magnetic encoder, a synchronous belt pulley I, a synchronous belt I, a tensioning wheel device and a rack; A timing belt pulley 1 and a timing belt 1 are arranged below the first stage fork pushing plate; One side of the synchronous belt pulley I is connected with the transmission shaft, and the other side is connected with the output shaft of the other reducer through the keyway. Tensioner wheel devices are respectively set on both sides of the other reducer for auxiliary fixation of the synchronous belt pulley I and the synchronous belt I; A rack is arranged between the first stage fork pushing plate and the synchronous belt; The fork extension drive motor and another reducer drive the synchronous belt pulley I and the synchronous belt I to rotate, and drive the synchronous belt pulley II and the synchronous belt II on the other side to rotate through the transmission shaft. At the same time, the racks on both sides drive the corresponding primary fork extension push plate to achieve primary fork extension. When the secondary synchronous belt pulley mechanism moves synchronously and drives the secondary fork extension plate to move, the U-shaped pulley rolls in the U-shaped chute, Make the secondary fork extension plate realize the secondary fork extension. The tensioning wheel device includes: bolt, adjusting bracket, double nut and tensioning wheel; A tensioning wheel is arranged below the synchronous belt I and on both sides of the other reducer, and is fixed on the main body bracket through a double nut; An adjusting bracket is arranged under the double nut through the bolt, and the position of the adjusting bracket is adjusted by the bolt, so that the adjusting bracket drives the double nut to move up and down, so that the synchronous belt I can maintain the tension state under the action of the tensioning wheel.
How will the HEGERLS shuttle bus drive enterprise benefits?
First, the traveling mechanism, fork extension mechanism and frame, sliding contact line and power collection device of the HEGERLS intelligent shuttle car with clip on storage are reasonably arranged, which makes full use of the space of the shuttle car, and can adapt to the automatic storage and retrieval of goods of different specifications and locations in the three-dimensional warehouse, expanding the application coverage of the shuttle car, and quickly and effectively complete a series of continuous actions of the shuttle car, such as walking, fork extension, picking up and placing goods, It realizes the rapid and accurate storage of goods, thus greatly improving the operation efficiency and automation technology level of automated warehouse, and reducing the investment costs of enterprises. At the same time, it is simple and light in structure, high in reliability, and easy to maintain. It can replace the traditional roadway stacker, realizing the flexibility of the system, and conforms to the development trend of e-commerce logistics and warehousing automation.
Second, in the traveling mechanism of HEGERLS intelligent shuttle car, the connecting shafts of driving wheels and passive wheels are provided with grooves, and the connecting parts of bearings are connected by a new type of elastic retainer ring, realizing the axial positioning effect of connecting shafts; By using the elastic retainer ring to achieve the axial positioning effect, the production efficiency can be increased and the cost can be saved.
Third: The Higelis HEGERLS intelligent shuttle car for holding storage realizes that the driving wheel and the passive wheel always move on the straight track without deviating from the track through the double guide wheel structure. This positioning structure is more stable and reliable.
Fourth, the secondary fork extension structure adopted by the HEGERLS intelligent shuttle car can make the fork extension distance farther and obtain more baskets at different positions; At the same time, the principle of the secondary fork extension mechanism is simple, and the cost of design and manufacture is low; The transmission part adopts the mode of single motor+reducer+transmission shaft to make the secondary fork extension mechanism reach the purpose of synchronous expansion and contraction, which saves more costs, effectively reduces the required layout space, and reduces the weight of the shuttle car.
Fifthly, the Higelis HEGERLS intelligent shuttle car adopts a new type of tensioning wheel device, which can quickly keep the synchronous belt tensioned and realize the normal work of the shuttle car. Moreover, this tensioning wheel device is simple to make, convenient to install and can be quickly adjusted, which saves cost, saves space and improves work efficiency.
