Crossbeam pallet shelf, also known as heavy shelf, is the most common kind of shelf with good picking efficiency. Because the storage density of its fixed rack is low andthe stored items are heavy, it must be used with pallet and forklift, so it is also called pallet rack. When selecting cross beam pallet shelves, the size, weight and stackinglayers of pallets and goods must be considered to determine the appropriate pillars and measure the size. In addition, in order to improve the space utilization rate, thechannel width can be reduced, combined with the special stacker track form to make the storage space vertical, that is, to become a narrow lane type material rack. Then when putting into use the pallet shelf of the beam type heavy warehouse, you should first understand it. Now let’s take you into the hegerls warehouse of haggis to understand the pallet shelf of the beam type heavy warehouse and how it has become an indispensable automated three-dimensional warehouse in many enterprises!
Hagerls is a comprehensive shelf supplier integrating R & D, production, sales and service. Since its establishment, the company has been adhering to the principle of integrity-based, customer first and quality, and has been highly praised by many customers in the industry. In particular, the company has long-term strategic partners in the field of logistics and warehousing, medical chemical industry, automobile manufacturing, military factories, etc. the company has five R & D personnel, mainly to improve the technology of the shelf industry, so as to launch new products from time to time to meet the needs of different customers, and raise the design standards and concepts of shelves to a new level, which is also the development direction of our technology.
Hegerls also has perfect shelf production equipment. The company strictly implements the ISO quality system standards, and designs and manufactures shelves with strong bearing capacity, corrosion resistance, reasonable structure, convenient disassembly and assembly, and random combination according to different customer needs on the basis of mechanical theory and steel structure technology. Tailor made for its customers to deliver modern logistics concepts. With perfect management, modern equipment and high-speed development, hegerls is striding forward to a modern logistics and warehousing enterprise.
At the same time, the factory has many years of experience in the production, installation and commissioning of large warehouses. According to the customer’s requirements, the floor plan of the warehouse can be measured on site, and a reasonable warehouse storage scheme can be given according to the customer’s requirements. The factory supports customers’ personalized customization needs. For example, the color, size, bearing requirements of each layer of the shelf, etc. the quantity can be customized, and there is no custom processing fee.
Many different types of storage shelves and storage equipment produced by Hegels are different from those of other manufacturers. Now let’s take a look at the differences between Hegels beam heavy warehouse pallet shelves?

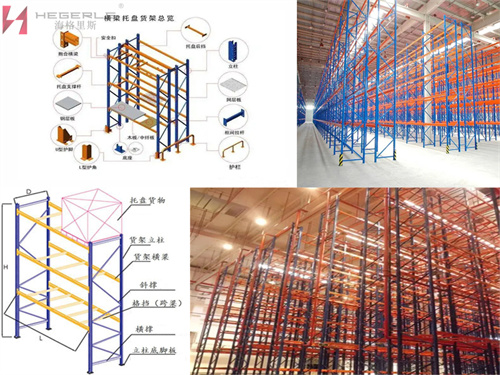

Hagerls – cross beam pallet shelf structure
Column piece: it is composed of two columns, cross braces and diagonal braces connected by nylon self-locking bolts. The combined structure effectively prevents the shelf instability caused by the loosening of bolts. The columns are punched with double rows of rhombic holes, and the hole pitch is 75mm or 50mm. Therefore, the beam hanging on the column can be adjusted up and down freely by 75mm or 50mm as a single position. The cross section of the column is composed of 11~13 faces, with large inertia distance, strong bearing capacity and strong impact resistance. The cross beam shelf column adopts the technology of automatic punching first and then cold bending forming, which avoids the possible crack failure of the column due to the stress concentration of the column. In order to prevent the collision of forklifts, columns are generally equipped for protection.
Crossbeam: it is welded by two column clamps and crossbeam rods. The crossbeam is welded by two special shaped holding welding beams to double the thickness of the upper and lower parts of the crossbeam. According to the steel structure design theory, this structure makes full use of the load-bearing capacity of the material, with the characteristics of light weight, strong load-bearing capacity and low cost. When the beam is connected with the column, it is equipped with a specially designed safety pin with lugs. The safety pin with lugs cannot be easily pulled out, which can ensure that the beam will not fall off after being impacted by external forces.
Heigris hegerls – structural details of three-dimensional warehouse with crossbeam pallet shelf
High strength laminate: the appearance is made by pickling, phosphating, automatic assembly line spraying and high-temperature paint baking, with super corrosive effect;
Crossbeam: it adopts the hook hole design, which is reasonably inserted with the kit on the crossbeam, which is convenient for disassembly and assembly. Compared with the angle steel shelf, it saves 1/2 of the installation time and greatly improves the efficiency;
Super welding technology: three-dimensional horizontal brace and diagonal brace are welded to increase the three-dimensional bearing capacity;
Welded floor: enhance the friction between the shelf and the ground and enhance the stability of the shelf;
Crossbeam: the crossbeam is equipped with safety buckle to prevent moving the crossbeam;
Stamping shaped parts: the shaped parts are automatically rolled by our factory, and their rigidity and strength meet the industrial standards of the Ministry of machinery.
Heigris hegerls – auxiliary equipment of beam pallet rack three-dimensional warehouse
Shelving: support the tray, strengthen the stability and safety of the tray. (i-span beam, i-span beam, i-span beam)
Pull rod: including back pull, channel pull, wall pull, etc., to increase the safety and stability of the shelf.
Corner guards and crash barriers (one out of two): protect the column to prevent the forklift from accidentally hitting the shelf.
Safety pins, bolts and other accessories: equipped with complete safety pins, bolts, expansion screws and other accessories, which can strengthen the beam to fall off, and better ensure the safe use of shelves.
The cross beam tray rack structure is simple and reliable, which can be adjusted and combined at will, and has the characteristics of large moment of inertia, strong layer loading capacity and strong impact resistance. Each layer can be loaded up to 5000kg/ layer under the relative design. It is not limited by the sequence of items in and out of the warehouse, and can be molded very large. Mold shelves, attic shelves, three-dimensional warehouse shelves, etc. can also be built on the basis of tray shelves, which can be made into special oil barrel shelves, etc. This heavy shelf can be widely used in the storage mode of pallet storage and forklift access. In terms of appearance, it can prevent the forklift from colliding, and can also increase the column foot guards and anti-collision rods. In order to carry the layer load, it can also place the beam support, laminate, mesh cross beam and other ancillary facilities on the beam. When enterprises put this heavy storage rack into use, it can effectively improve the storage height of the warehouse and improve the space utilization rate of the warehouse. It has the advantages of low cost, convenient installation and operation, easy to find the location, suitable for handling tools, and suitable for the storage of various types of goods.
Hagerls – advantages of three-dimensional warehouse with crossbeam pallet shelf
Larger bearing capacity and lighter volume: the bearing capacity per square meter is more than 300kg, which can easily meet your maximum bearing demand;
Warehouse space upgrade: the shelves can be combined with the main and auxiliary shelves, greatly improving the storage space, facilitating the storage of goods, saving rent and improving work efficiency;
Durable: supermarket bearing, smooth and beautiful welding, with wear resistance, corrosion resistance and rust resistance, even the wettest basement is also applicable;
Powder spraying process: the coating is dense, with good adhesion, impact strength and toughness, high corner coverage, excellent chemical corrosion resistance, and is always new for a long time;
Cold rolled steel manufacturing: ensure that the material thickness is uniform and the surface is free of concave convex phenomenon;
Horizontal and oblique branch square tube design: a large number of horizontal branches enhance the tension of the column group.
Hagerls – crossbeam pallet rack three-dimensional library can be used in multiple ways
Matching with steel pallets: steel pallets are placed on crossbeam shelves, and steel pallets are configured on high shelves to store heavy goods, which is safe and cost-effective.
Matching with chuanzi material box and plastic tray: the first layer of goods is directly placed on the ground with material box to ensure that the goods are not affected by moisture, and the second and third layers are equipped with I-shaped grid under chuanzi plastic tray.
Matching steel plate: considering that the feet of the material box cannot accurately fall on the beam, the steel plate is laid on the beam to ensure safety.
With welded steel plate joists: steel plates can be welded on two grids to make drag beams, which are used to carry four feet of the material box, which not only ensures that the material box can safely fall on the shelf, but also saves costs.
Matching with double-sided wooden pallet: 6m high position combined with double-sided wooden pallet to store barreled goods. The beam shelf has a large load, which is safe and reliable.
Match with a slotted grid: add a slotted grid on the beam to make the placed wooden pallet safer.
Matching with Wang Zi grid block: if the specification and size of the pallet placed on the beam shelf are not uniform, and the pallet load cannot meet the high-altitude operation standard, Wang Zi grid block can be added.
Matching with steel plate and pallet: bulk cargo and whole pallet storage are combined. The low floor is paved with steel plate to place bulk cargo, and the high floor is equipped with pallet for forklift access.
In the process of using storage shelves, the effect of cross beam pallet shelves is very obvious. Its use value is mainly reflected in the special operation in combination with the width direction of the warehouse or special structure, etc. this can explain that the cross beam pallet shelves can be more convenient for the storage and storage of goods in the actual operation process, and its versatility is also relatively strong. In general, the use value of cross beam pallet shelves has been truly reflected in many enterprises and recognized by customers. Its flexibility and versatility have effectively improved the economic benefits of enterprises to a certain extent, and shelves have also been widely used in high-level warehouses.
